DESCRIPTION

Basic Info

Model NO.	PVC Compound Granules for Shoes
Origin	China
HS Code	3904109090
Production Capacity	2000tons/Month

Product Description

PVC soft compound also known as a dry blend are based on the combination of the PVC and additives that give the formulation necessary for the end-use application. The convention in recording the additive concentration is based on parts per hundred of the PVC resin (phr). The compound is generated by intimately mixing together the ingredients, which is subsequently converted into the gelled article under the influence of heat (and shear). Depending on the type of PVC and additives, the compound prior to gelation, can be a free-flowing powder/dry blend or a liquid in the form of a paste or solution. PVC compounds can be formulated for flexible materials using plasticisers, called PVC Plasticized Compounds and for rigid application without plasticizer called UPVC compound.

As per the assorted requirements and desires of our customers, we are providing a premium quality of Coloured PVC Granules. These products are the pinnacle of quality and extensively used owing to their active nature. Our offered product is reachable in various packaging options as per the desires of consumers.

Application:

l PVC Medical Tubing,

l Garden hose,

l Corrugated hose,

l Milk tube,

l Gas burner tube,

l PVC shoes sole,

l Floor mat or car mat,

l Moulding articles and many more customize application.

Advantage:

l Eco-friendly,

l Non-peculiar smell,

l Cold-resistant,

l Bright colorful,

l High transparency.

Item No.	Density(g/m³)	Hardness (Shore A)	Tensile Strength (Mpa)	Elongation At break(%)	Color	Application
SPVC806	1.19	65	14	350	Transparent crystal	Sandles
SPVC807	1.21	75	16	340	Transparent natural	Belt
SPVC808	1.35	60	12	320	Yellow	Rain boots upper
SPVC809	1.31	70	13	330	Black	Sport shoes sole

1.Technical specifications of 70 ºC pvc compound

Tensile strength	MPa	20.5
Fracture tensile strain	%	320
Ageing temperature	ºC	100
Ageing time	h	168
Tensile strength after ageing	MPa	22.5
Max change of tensile strength	%	+12
After ageing fracture tensile strain	%	290
Max change of fracture tensile strain	%	-10
Thermal deformation	%	28
Thermal ageing quality loss	g/m2	19
200ºC thermal stability time	min	90
20ºC volume resistivity	Ω.cm	2.0*1011

Technical specifications of 90 ºC pvc resin compound

Tensile strength	MPa	20
Fracture tensile strain	%	330
Ageing temperature	ºC	100
Ageing time	h	240
Tensile strength after ageing	MPa	21.5
Max change of tensile strength	%	+8
After ageing fracture tensile strain	%	310
Max change of fracture tensile strain	%	-6
Thermal deformation	%	28
Thermal ageing quality loss	g/m2	9
200ºC thermal stability time	min	120
20ºC volume resistivity	Ω.cm	2.0*1010

2,Use and standard: wire and cable

3,Process: extrusion

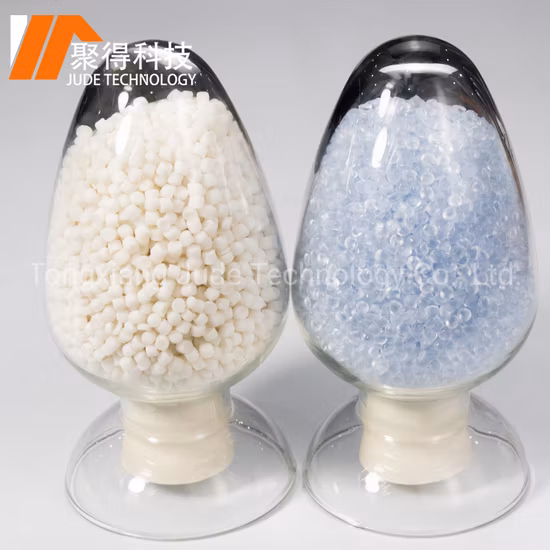

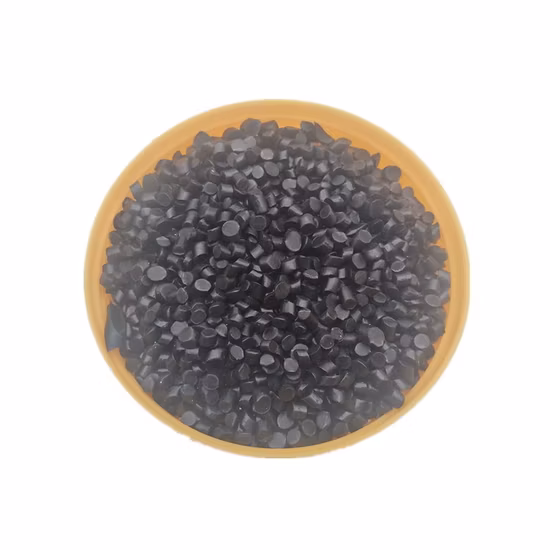

4,Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.

5,color: Any colors, base on requirement.

6,Packing: 25kg net weight or 1000kgs per jumbo bag



Product advantage:

1. Good elasticity and resistance
2. Environmental protection
3. Flexible ,transparent ,durable , and non-toxic
4. Resistant to corrosion ,adapt to high pressure condition.
5. Customized formulas according to customer's specification, machine, weather and markets.

   As a experienced company in the foaming PVC granules field for more than 20 years ,we take the opportunity seriously to cooperate with customers. We always put the quality as the first consideration.

4.Package&Storage&Transportation:1.Packing: 25kg/ carton or 25kg/bag, or per your requirement 5kgs net weight in PP woven or PE plastic bag about 20 tons for 20" container2.Storage: The resin should be stored in a drafty, dry warehouse and away from fire and direct sunlight. It should not be piled up in the open air.3.Transportation: During transportation, the product should not be exposed to strong sunlight or rain and should not be transported together with sand, soil, scrap metal, coal or glass. Transportation together with toxic, corrosive and flammable substance is strictly prohibited.

FAQ:

Q1: May I get sample before placing order?Re: Yes, Sample are available. For small samples is free and you just need to bear the freight; Q2: Which payment is available for your company?Re: T/T, L/C at sight. You can choose the one which is convenient for you. Q3: How and when can I get my goods after payment?Re: For small quantity products, they will be delivered to you by international courier within 2 days(DHL, FedEx, TNT etc.) For large quantity products, shipping by sea is worthwhile.It will cost days to weeks to come to your destination port, which depends on where the port is.Q4: Is there any possible to use my appointed label or package?Re: Yes. If needed, we'd like to use label or package according to your requirement. Q5: How can you guarantee the goods you offer is qualified? Re: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
